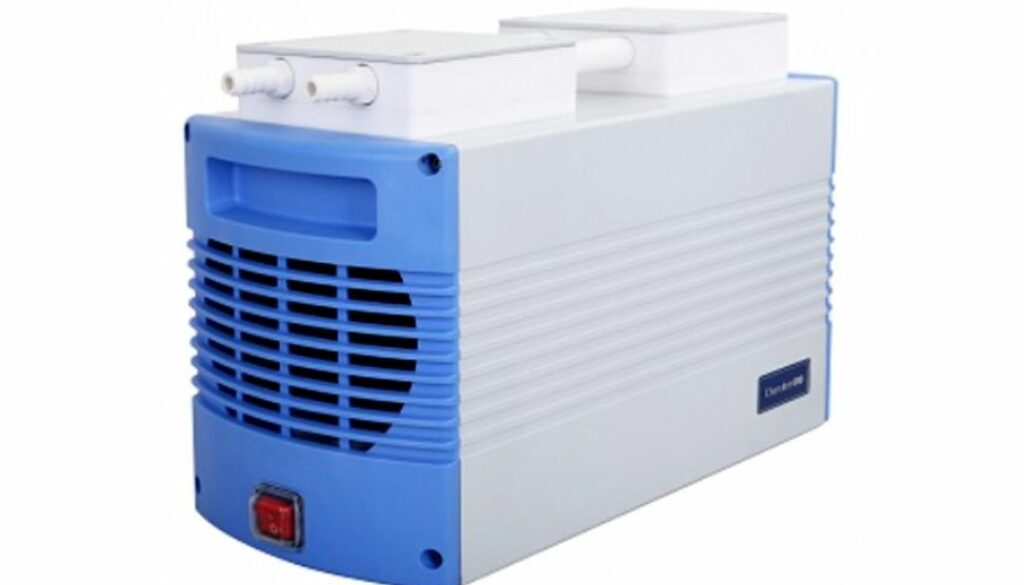

Chemker 600 – Vacuum Pump
Features :
– High chemical resistance
All wetted parts of Chemker series pump are made of PTFE material which can resist most of corrosive gases.
– Start against vacuum
Chemker 600 series pumps, designed to start against vacuum, are ideal for various kinds of laboratory instruments which need to stop and restart pump repeatedly during operating process.
– No air pollution, maintenance free
Chemker series pumps are driven by Diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
– Quiet and low vibration
Driven direct by motor with no additional belt-driven transmission; the quality vibration-proof assembly makes Chemker series run at the lowest noise level among all other equivalent pumps.
– Thermal protection device
Every motor of Chemker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
International certification :
– CE certification
Applications :
– Rotary evaporator
– Concentrator
– Vacuum drying / oven / defoaming
– Solvent purification
– Vacuum filtration
Ordering Information :
– 169600-22, Chemker 600, Chemical Resistant Vacuum Pump, AC220V, 50Hz
Specification :
– 220V, 50Hz
– Max. power : 200 W
– Max. current : 1.2 A
– Max. vacuum : 65 mbar
– Max. flow rate : 60 L/min
– Motor rotation : 1450 RPM
– Horse power : 1/3 HP
– Noise level : 60 dB
– Hose barb : ID10 (3/8 inch)
– Thermal protection : Yes
– Net weight : 13.2 kg
– Dimension (LxWxH) : 35 x 15.4 x 22.5 cm
