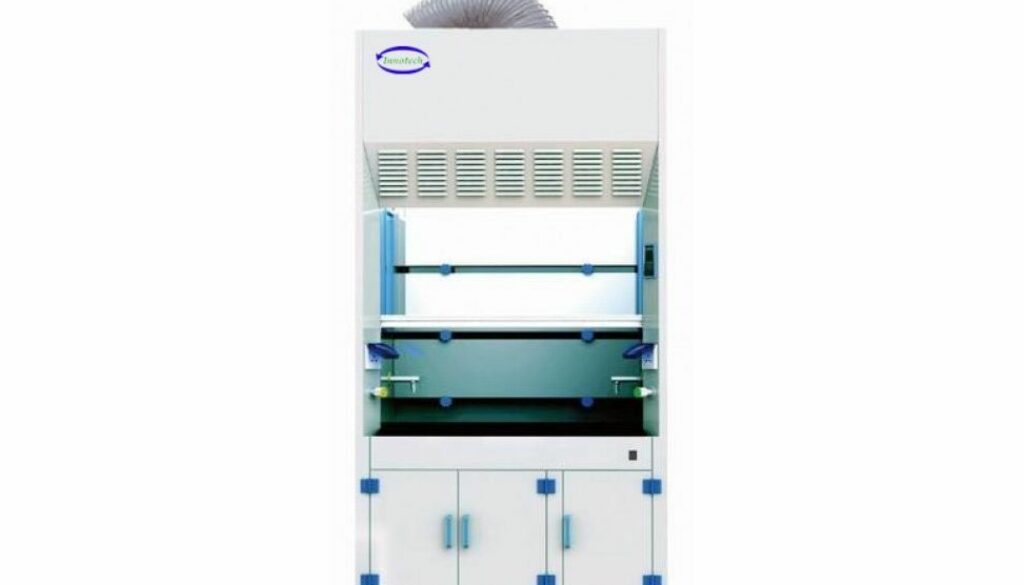

FH(P)-Series Fume Hood

FH(P) series

Fume Hood

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.

Advantage :

1. It is safer to use anti-corrosive water tap.

2. Microprocessor control system, LED display

3. With memory function in case of power-failure

4. Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.

5. Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.

TECHNICAL PARAMETERS :

Model	FHI 1000(P)	FHI 1200(P)	FHI 1500(P)	FHI 1800(P)
External Size (WxDxH)	1040x750x2450 mm	1240x800x2450 mm	1540x800x2450 mm	1840x800x2450 mm
Internal Size (WxDxH)	820x520x872 mm	980x570x700 mm	1280 570 700 mm	1580x570x700 mm
Work Surface Height	820mm
Max Opening	740mm
Air Velocity	0.3~0.8m/s
Noise	≤68dB
Illuminating Lamp	LED lamp
12Wx1	30Wx2	30Wx2	36Wx2
Blower	Built-in PP centrifugal blower (2 blowers for FHI 1800(P) only) Speed adjustable
Front Window	Resitant to acid and alkali, Manual, 5mm toughened glass, height adjustable.
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	330W	360W	360W	360W
Material	Main Body	Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion
Work Table	Chemical resistant phenolic resin
Standard Accessory	Illuminating Lamp, Water tap, Gas tap, Water Sink, Base cabinet
Waterproof socketx2, PP centrifugal blower, pipe strapx2 (4 Pcs for FH1800(P) only)
4 meters PVC duct (2 Pcs of 4 meters PVC dust for FHI 1800(P) only), Diameter : 250 mm
Optional Accessory	PP work table, epoxy resin board or ceramic board.
Outer PVC centrifugal blower (only need to select when the duct more than 4 m)
Gross Weight	160 kg	198 kg	225 kg	259 kg
Package Size (WxDxH)	Main Body	1190x890x1620 mm	1390x940x1620 mm	1690x940x162 mm	1990x940x1620 mm
Base Cabinet	1190x890x1040 mm	1390x940x1040 mm	1690x940x1040mm	1990x940x1040 mm
