LR 1000 control complete package
The LR 1000 control is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The system can be adapted quickly and easily for a wide range of applications and specific requirements. The reactor is especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.30 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package. Prominent features of the LR 1000 control system are the integrated pH sensor connection and the display interface. The latter allows for the display of all process-relevant data onto a PC, save data storage and control of the reactor. The software (accessory) allows for further adaptation of the overall system and processes.
Metals in contact with medium: stainless steel ( ALSI 316 L), FFKM, PTFE, PEEK, borosilicate glass 3.3
– Large easy to read TFT display for better image quality and easy navigation
– Integrated weighing function
– Torque trend measurement indicates changes in product viscosity
– Integrated pH sensor connection
– RS 232 and USB interface to operate the unit with the laboratory software labworldsoft
– Standard joint fittings on the lid: 2 x NS 29, 2x NS 14, 2 x GL 14 for flexible adaptation of further equipment
– Expandable for use with the ULTRA- TURRAX® T 25 digital (Accessory)
– Vacuum valve included with delivery
– Anchor stirrer with PTFE-scrapers
– Connections to attach a cooling source to the back of the unit
– Manual adjustable safety circuit
– Integrated safety shutdown when vessel or lid is removed from the base

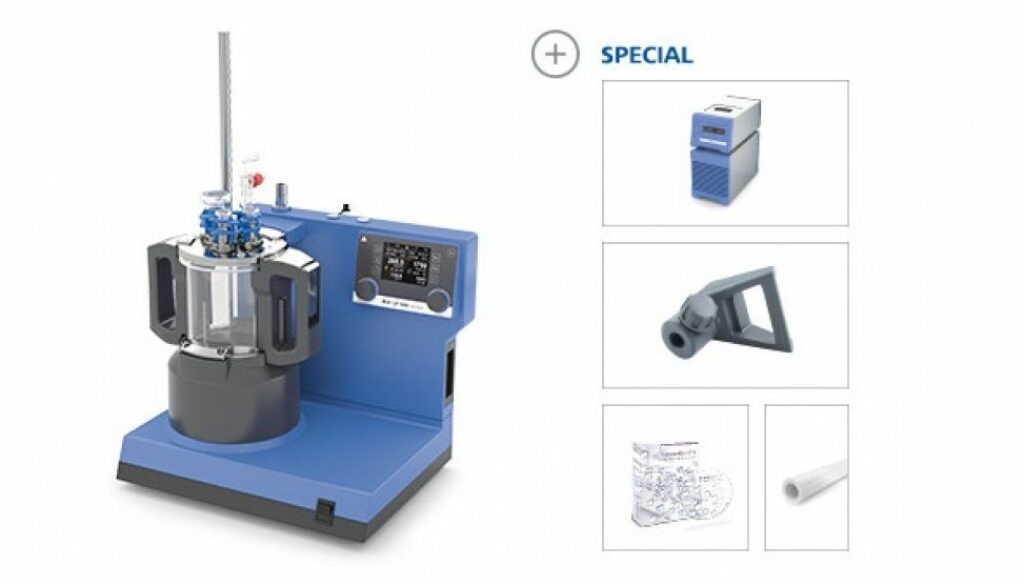

Package includes :
– LR 1000 control Package
– RC 2 basic
– labworldsoft®
– H.PUR.8.R Tube (2x)
– LR 1000.70 Lid Holder
Technical data :
Speed max. : 150rpm
Speed min. : 10rpm
Viscosity max. : 100000mPas
Support rod diameter (with integrated fastening on stand) : 16mm
Attainable vacuum : 25mbar
Nominal torque : 3Nm
Heat output : 1000W
Usable volume max. : 1000ml
Speed min (adjustable) : 10rpm
Permissible ON time : 100%
Temperature measurement resolution : 0.1K
Heat control accuracy of medium with sensor : 0.2±K
Voltage : 230V
Weight : 16kg
Working temperature max. : 120°C
Cooling medium temperature min. : 3°C
Depth : 295mm
Width : 443mm
Height : 360mm
Power input : 1200W
Weighing resolution : 1g
Weighing range max. :2000g
Usable volume without disperser tool min. : 500ml
Usable volume with disperser tool min. : 300ml
Speed deviation : 5±rpm
Cooling medium permissible operating pressure : 1bar
Adjustable safety circuit, upper temperature value : 225°C
Adjustable safety circuit, lower temperature value : 47°C
Adjustable safety circuit, lower temperature value deviation : 10±K
Adjustable safety circuit, upper temperature value deviation : 20±K
Set temperature resolution : 1±K
Heating temperature max. : 180°C
Safety cutout : yes
Display for operation with ext. sensor : yes
Reversible direction of rotation : no
Stirring element fastening : special output shaft
Torque display : yes
Speed display : TFT
Type of cooling : flow
Speed control : 1 RPM steps
RS 232 interface : yes
Timer : yes
Protection class according to DIN EN 60529 : IP 21
USB interface : yes
Connection for ext. temperature sensor : PT 100
Temperature display : yes
Torque measurement : trend
Timer display : TFT
Material in contact with medium : AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FFKM
pH value display : TFT
Permissible ambient temperature min. : 5°C
Permissible ambient temperature max. : 40°C
Frequency : 50/60Hz
Permissible relative humidity : 80%
pH meter interface : yes
Reactor vessel openings (units/standard) : 2x NS 29/32, 2x NS 14/23 & 2x GL 14
Safety temperature sensor : PT1000
Working temperature sensor : PT 100
Working temperature display : TFT
Safety temperature display : TFT
Heat control : TFT
Analog output : no
