Multivac 300-MB-T Filtration System

MultiVac 300-MB-T

Filtration System

Features :

– Special design for microbiology filtration

MultiVac 300-MB-T are designed for a large number of samples filtration on microbiology test. Each system includes vacuum pump, manifold, burner, waste bottle and filter.

– Innovative vent valve design

An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.

– Quick-Fit hose barb

Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.

– Individual control valve

Each branch permits individual control.

Applications :

– Filtration for microbiology test
– Chemical experiment
– General laboratory filtration

Specification (110V, 60Hz) :
– Max. flow rate : 37 l/min
– Max. vacuum : -680 mmHg
– Waste bottle : 4000 ml, made of PP with drain
– Number of branch : 3
– Filter diameter : 47mm / 50mm
– Funnel capacity : 100 ml
– Effective filtration area : 9.6 cm²
– Hose barb : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
– Max. flow rate : 34 l/min
– Max. vacuum : -680 mmHg
– Waste bottle : 4000 ml, made of PP with drain
– Number of branch : 3
– Filter diameter : 47mm / 50mm
– Funnel capacity : 100 ml
– Effective filtration area : 9.6 cm²
– Hose barb : 5/16 inch (8 mm)

Material(Part) :
– Body : SUS316
– Control valve : SUS316
– Filter funnel : SUS316
– Funnel support base : US316
– Handle : luminum
– Connector : SUS316
– Vent valve : SUS316

Ordering Information :

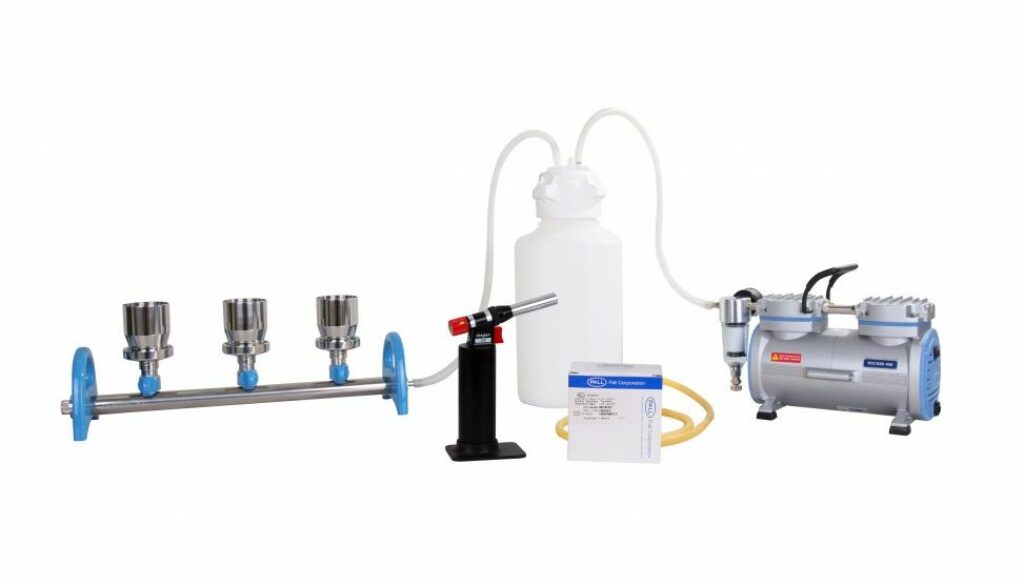

180300-11-T (22-T), MultiVac 300-MB-T, Vacuum Filtration System, complete set includes :
– Rocker 400, Oil Free Vacuum Pump

– MultiVac 300-MB, 3-Places Stainless Steel Manifold

– 100ml S.S. filter funnel, 3pcs
– 4000 ml PP Waste Bottle with drain
– Dragon 100, Torch Burner
– MCE Membrane, 47 mm, 0.45 μm, 200/PK
– Silicone Tube (2m)
