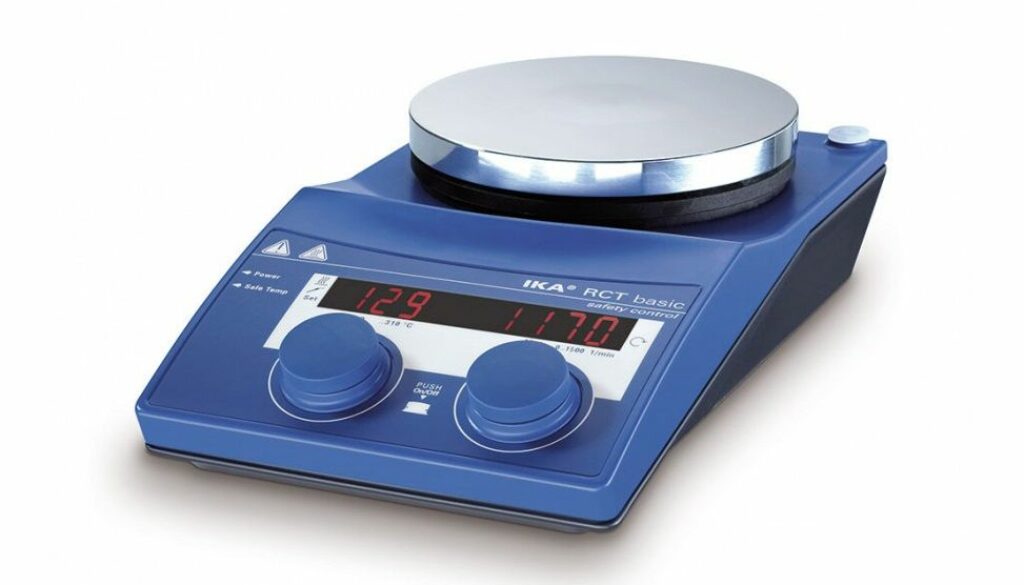

RCT Basic – Stirring Hot Plate

RCT basic

Magnetic Stirrers with Heating

The bestseller in laboratories: Strong motor for a higher range of speeds, additional temperature control mode for faster heating of medium

Specifications :

– Integrated temperature control

– Incl. PT 1000 temperature sensor (PT 1000.60)

– Exact temperature and speed setting via digital display, even when switched off

– Set safety temperature limit displayed digitally

– Hot Top indicator >> hot surface warning to prevent burns!

– Digital error code display

– With adjustable safety circuit of heating plate temperature (50 – 360 °C)

– Safety magnetic stirrer with heating, suitable for unsupervised operation

– Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control

– High level of safety thanks to improved heat control technology

– Enclosed assembly (IP 42) guarantees long service life

– Aluminium heating plate for optimum heat transfer

– Improved magnetic adhesion

– Incl. protection cover H 100

– Max. stirring quantity (H2O): 20 l

– Speed range: 50 – 1500 rpm

– Temperature range: RT – 310 °C

Technical data :

– Adjustable safety circuit min. : 50°C

– Adjustable safety circuit max. : 360°C

– Set-up plate dimensions : Ø 135mm

– Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h) : 28+K

– Heating temperature min. : Room temp. + device self heating°C

– Heating temperature max. : 310°C

– Speed min. : 50rpm

– Heat output : 600W

– Heating rate heating plate : 6.5K/min

– Stirring bar length min. : 20mm

– Temperature setting range min. : 0°C

– Depth : 270mm

– Height : 85mm

– Weight : 2.5kg

– Power input : 650W

– Width : 160mm

– Setting accuracy speed : 10rpm

– Temperature setting range max. : 310°C

– Temperature setting resolution of heating plate : 1K

– Temperature setting resolution of medium : 1K

– Motor rating output : 9W

– Stirring bar length max. : 80mm

– Connection for ext. temperature sensor : PT1000

– Set-up plate material : Aluminium alloy

– Speed display actual-value : LED

– Temperature display set-value : LED

– Heat control : Turning knob

– Protection class according to DIN EN 60529 : IP 42

– Speed control : Turning knob

– Direction of rotation : right

– Speed display set-value : LED

– Temperature display actual-value : LED

– Temperature unit : °C

– Speed max. : 1500rpm

– Stirring quantity max. per stirring position (H2O) : 20l

– Voltage : 220 – 230V

– Frequency : 50/60Hz

– Permissible relative humidity : 80%

– Sensor in medium detection (Error 5) : yes

– Permissible ambient temperature min. : 5°C

– Permissible ambient temperature max. : 40°C

– Number of stirring positions : 1
