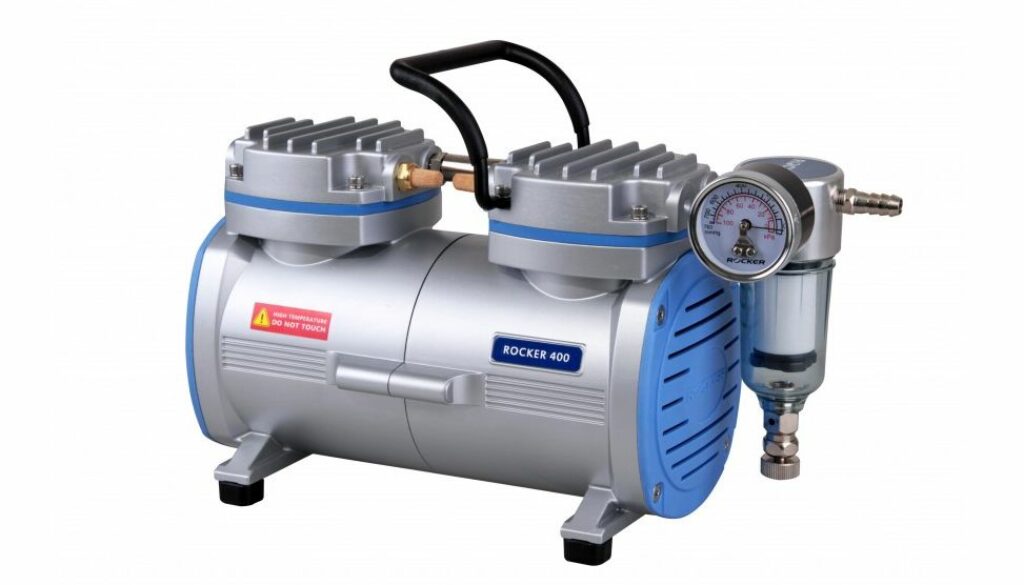

Rocker 400 -Vacuum Pump

– No air pollution, maintenance free

Rocker series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

– Prote™ overflow protection

Rocker series pumps are equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.

– Moisture trap with filter cartridge

Rocker series pumps are equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.

– Vacuum regulator

Rocker series pumps are equipped with vacuum regulator to adjust vacuum.

– Thermal protection device

Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

International safety certification :

– CE certification

– CSA certification

– IP 30 protection class

– ROHS certification

Applications :

– Filtration for microbiology test

– Air sampling

– Suspended solid test

– Vacuum filtration

Specification :

– 220V, 50Hz

– Max. power : 80 W

– Max. current : 0.4 A

– Max. vacuum : 106mbar (-680mmHg)

– Max. flow rate : 34 l/min

– Moisture Trap : Yes

– Vacuum Regulator : Yes

– Overflow protection : Yes

– Motor rotation : 1450 RPM

– Horse power : 1/6 HP

– Noise level : 52.0 dB

– Port thread : 5/16 inch (8 mm)

– Net weight : 5.2 kg

– Dimension (LxWxH) : 31.0×13.5×20.4 cm

Ordering Information :

167400-22, Rocker 400, Vacuum Pump, AC220V, 50Hz
