SER 158 – Solvent Extractor
SER 158 – Automatic Solvent Extractor VELP – Italy

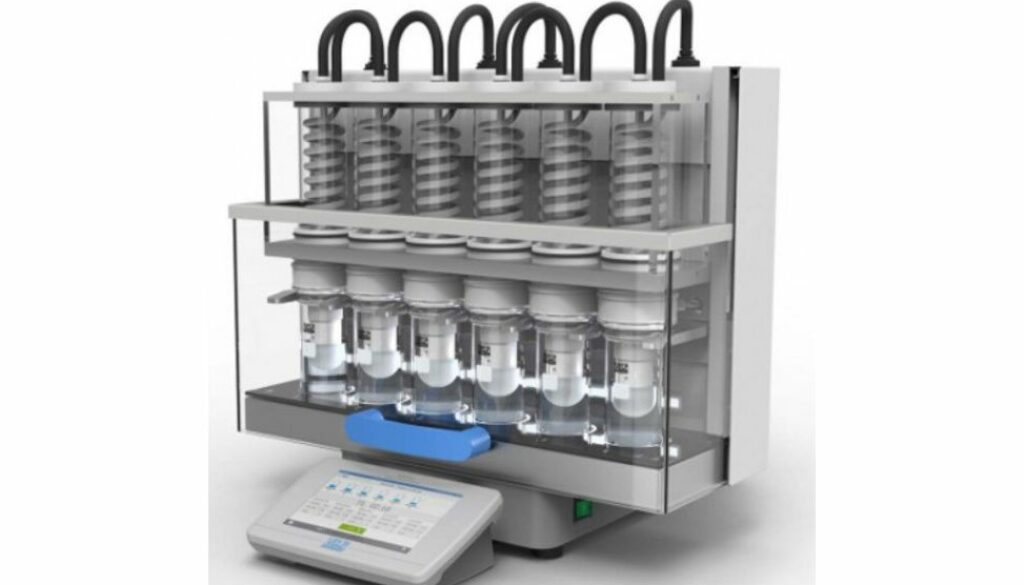

SER 158 Series Automatic Solvent Extractor
A fully automated solvent extractor capable of a high sample throughput, offering state-of-the-art technology for a fast, precise and accurate fat determination in complete safety according to Randall or Twisselmann techniques.
Accurate and Precise
The SER 158 provides reliable and accurate results improving extraction process compared to traditional Soxhlet method (five times faster). The determination of extractable matter is performed with a solid-liquid extraction process that removes soluble components from solids using a liquid solvent. The SER 158 guarantees excellent reproducibility and compliance of the results to the major standards. LED guidance for active positions helps to monitor and supervise the whole process.
Fully Scalable and Proven Performance
SER 158 configuration is fully scalable. In addition to the first unit equipped with the new powerful ControlPad, your investment is protected by seamlessly allowing the increase of connected units according to the throughput requirements.
A single ControlPad is able to control up to 4 SER 158 independent with a maximum of 24 active positions processing up to 168 samples/day (or 42 samples/day/unit).
Easy User Interface and Smart Data Management
The SER 158 is equipped with a large 7 inches display extractable ControlPad with an intuitive User Interface for a powerful and smart data management and includes a multi-lingual support.
Integrated yet removable, the ControlPad can be connected with a balance for a completely new user experience.
Each extraction step is easy visualized on the ControlPad along with a great set of information and options. Results are immediately calculated and stored on the on-board memory.
3 USB ports are available along with Ethernet connection for data transfer to external devices.
Maximum Safety
The SER 158 safe SolventXpress™ technology allows smart solvent dispensing for solvent addition minimizing the exposure to solvents and ensuring operator safety.
The unit is also hermetically sealed with a protective transparent cover and a variety of sensors to monitor and ensure a safe analysis during all the steps.
SafeEnd™ feature of the SER 158 prevents extracted matter burning eliminating laboratory accidents.
A wide range of accessories has been designed to assure safe sample handling for a large variety of solvent extractions applications.
Extreme Versatility: Applications and Industries
The SER 158 configuration is immediately ready to address a variety of applications.
Solvent extraction with the SER 158 can be performed for extractable matter determination, either in food and non-food industries (such as pulp, paper, textile, chemical etc…) and for sample preparation for environmental analysis.
Extreme Versatility: wide range of Accessories
The SER 158 units come with numerous accessories designed to simplify the operations.
VELP extractors are supplied with extraction cups, thimbles of different sizes such small, medium and large (misure) and seals of different materials such as Viton, Butly , and Vaflon (high end solution for a wide range of solvents). Furthermore, a great number of other optional accessories complete the SER series assuring great operation versatility.
Unattended Operations – “Load & Go”
The SER 158 is designed to make analysis easy and to reduce to the minimum the duration of each step. Simply prepare the sample and start the process with one-click. VELP extraction units are equipped with high tech sensors which permit 24/7 analysis: the extractor automatically shuts down once the last analysis is finished without operator intervention.
The user only need to place the sample in the SER 158, set the program on the ControlPad and walk away: “Load & Go”.
Low Operating Cost
The SER 158 incorporates state-of-the-art technology to relief the user from manual operations in addition to limited resources consumption for an higher productivity.
Cost reduction is obtained by a minimal usage of cooling water (1l/min), independent heaters switch on/off in addition to an extremely compact footprint to save bench space.
The unique Patent pending titanium condensers ensure unparalleled performance and VELP’s technology enables more than 90% of solvent recovery reducing operational costs.
Exceptional Versatility and Scalability
– Great range of applications for fat determination and sample preparation
– Vast set of accessories for a wide range of applications
– Up to 4 SER 158 units independently controlled with a single ControlPad managing up to 24 active positions
– Works with the majority of solvents
High Productivity
– Fast fat determination
– Extraction process with Randall technique is 5 times faster than traditional Soxhlet
– 24/7 unattended operations with automatic shutdown to ensure high throughput
High Performance
– Fully automated extraction process
– Titanium condensers (Patent pending) for unparalleled performance
– Vast set of sensors and state-of-the-art technology
– Conform to Good Laboratory Practice standards
Extreme Safety
– SolventXpress™: the smart and hermetically sealed solvent dispensing system
– SafeEnd™: to prevent the overheating of the soluble matter
– Safety Guard: to ensure operator safety
Smart User Interface
– One click “Load & Go”
– Easy analysis program setting
– LED sguidance for active positions
– Multi-lingual support
– Several Predefined Methods
– Balance connection
GENERAL FEATURES :
Model: | SER 158/3, 115-230 V / 50-60 Hz, Cat. No. : S303A0390 SER 158/6, 115-230 V / 50-60 Hz, Cat. No. : S303A0380 SER 158/3, without ControlPad, 115-230 V / 50-60 Hz, Cat. No. : F303A0390 SER 158/6, without ControlPad, 115-230 V / 50-60 Hz, Cat. No. : F303A0380 |
Positions: | SER 158/3 : 3-positions SER 158/6 : 6-positions |
Max. Capacity: | SER 158/3 : 21 samples/day/unit SER 158/6 : 42 samples/day/unit |
Scalability: | SER 158/3 : 12-pos. (up to 4 units) SER 158/6 : 24-pos. (up to 4 units) |
Display: | 7” color touch screen – extractable ControlPad |
Accepted Solvents: | Capable of being used with the majority of solvents |
Solvent Recovery: | > 90% |
Measurement Range: | 0.1-100% |
Reproducibility (RSD): | ≤ 1% |
Automation: | Immersion, Removing, Washing, Recovery, Cooling |
Lighting: | LED lights show 3/6 active positions |
Heating Element: | Glass ceramic – 3/6 positions independent switch on/off |
Sample Size: | 0.5 to 15 g in 33×80 mm thimbles (generally 2-3 g) |
Seals: | Viton, Butyl, and Vaflon |
Condensers: | Titanium (VELP Patent Pending) |
Interfaces: | 3 x USB (balance, mouse, USB stick), Ethernet (Pc) |
Result Calculation: | Automatic, Archived on ControlPad |
Water Consumption: | from 1.0 l/min |
Dimensions (WxHxD): | SER 158/3 : 358x546x450 mm – 14×21,5×17,7 inch SER 158/6 : 546x546x450 mm – 21,5×21,5×17,7 inch |
Dimensions with ControlPad: | SER 158/3 : 358x546x570 mm – 14×21,5×22,4 inch SER 158/6 : 546x546x570 mm – 21,5×21,5×22,4 inch |
Weight (SER 158/ControlPad): | SER 158/3 : Kg 29 / 1 – 64 / 2,2 lb SER 158/6 : Kg 36 / 1 – 80,3 / 2,2 lb |
Power Supply: | SER 158/3 : 115/230 – 50/60 V-Hz SER 158/6 : 115/230 – 50/60 V-Hz |
Power Consumption: | SER 158/3 : 630/850 W SER 158/6 : 630/850 W |
