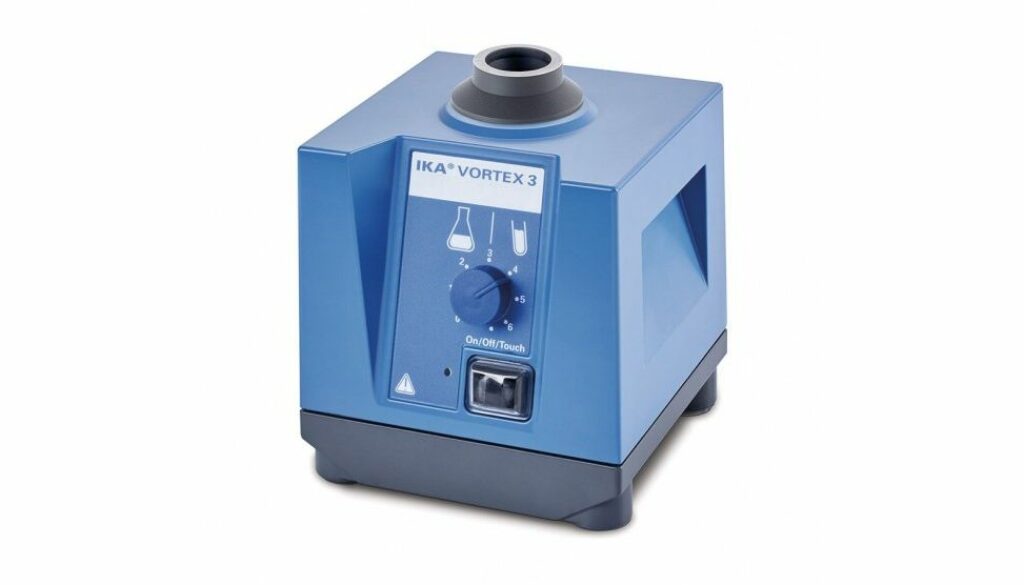

Harga Jual Vortex Mixer Vortex3

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.

– Wide speed range, infinitely adjustable

– Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately

– Attachments securely click onto appliance in any position

– Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks

– Sturdy metal zinc die cast casing

– Compact design

– Short-time operation activated by pressing attachment (touch function)

– Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)

– Eccentric with ball bearings

– Suitable for continuous operation with low self heating thanks to self ventilation of motor

Shaking movement: orbital

Orbital diameter: 4 mm

Infinitely adjustable speed range: 500 – 2.500 rpm

Technical data :

– Permissible ON time : 100%

– Motor rating input : 58W

– Shaker diameter : 4mm

– Motor rating output : 10W

– Permissible relative humidity : 80%

– Frequency : 50/60Hz

– Speed min (adjustable) : 500rpm

– Width : 127mm

– Power input : 60W

– Voltage : 200 – 240/115/100V

– Weight : 4.5kg

– Height : 136mm

– Depth : 149mm

– Permissible ambient temperature max. : 40°C

– Permissible ambient temperature min. : 5°C

– Shaking table lock : no

– Protection class according to DIN EN 60529 : IP 21

– Type of movement : orbital

– Analog output : no

– RS 232 interface :no

– Speed display :none

– Touch function :yes

– Speed max. : 2500rpm

– Speed min. : 0rpm

– Operating mode : continuous operation

– Number of microtiter plates : 1

– Working with microtiter plates : yes

– Timer : no
